Plans & Villa Specs

Nestled in the lush expanse of Sarjapur, Tattvam Woodsvale redefines modern living with its collection of exquisite luxury villas. Designed for those who value finesse and functionality, these luxury villas in Bangalore are a seamless blend of architectural elegance and contemporary comfort. Whether it’s the spacious layouts, eco-conscious designs, or exclusive amenities, every detail is crafted to elevate your lifestyle. Imagine mornings filled with natural light and evenings unwinding in serene green surroundings.

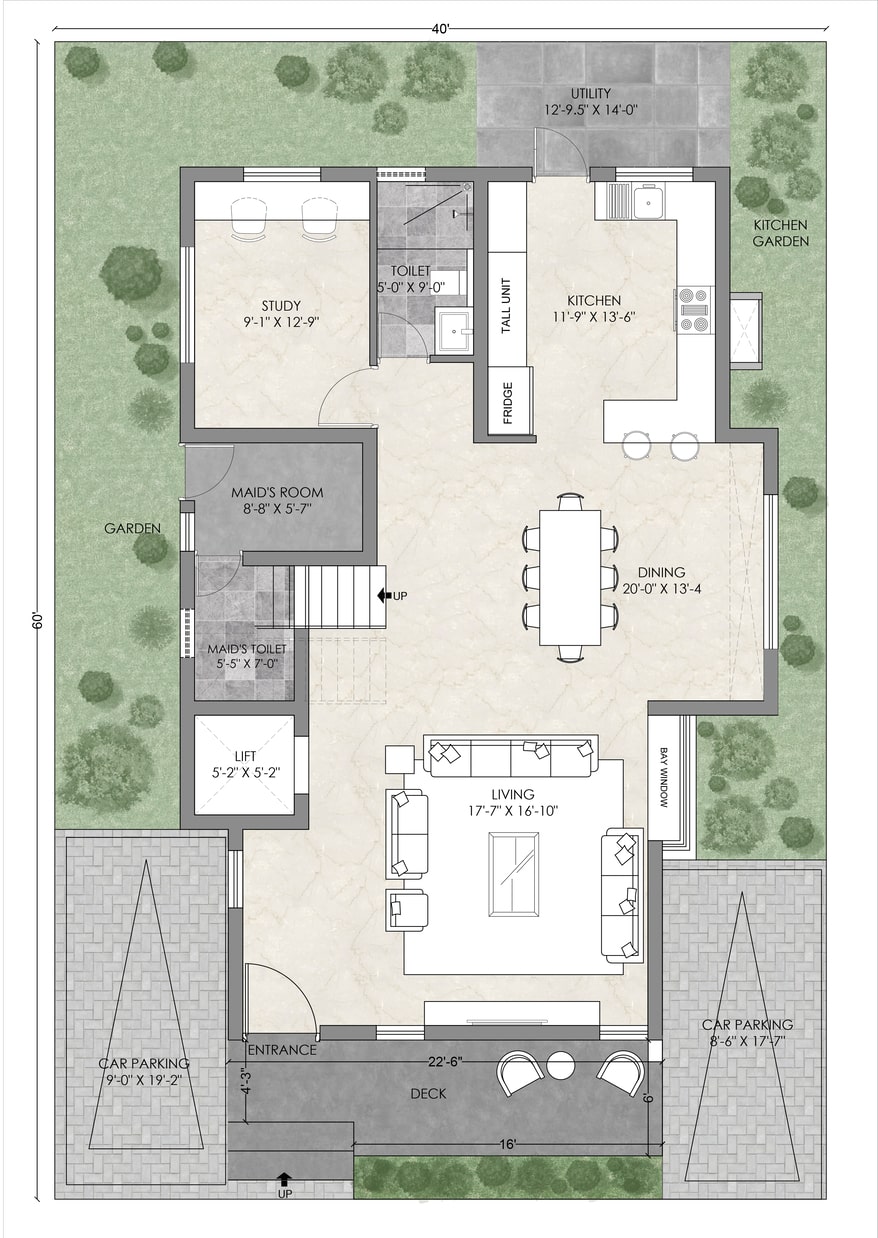

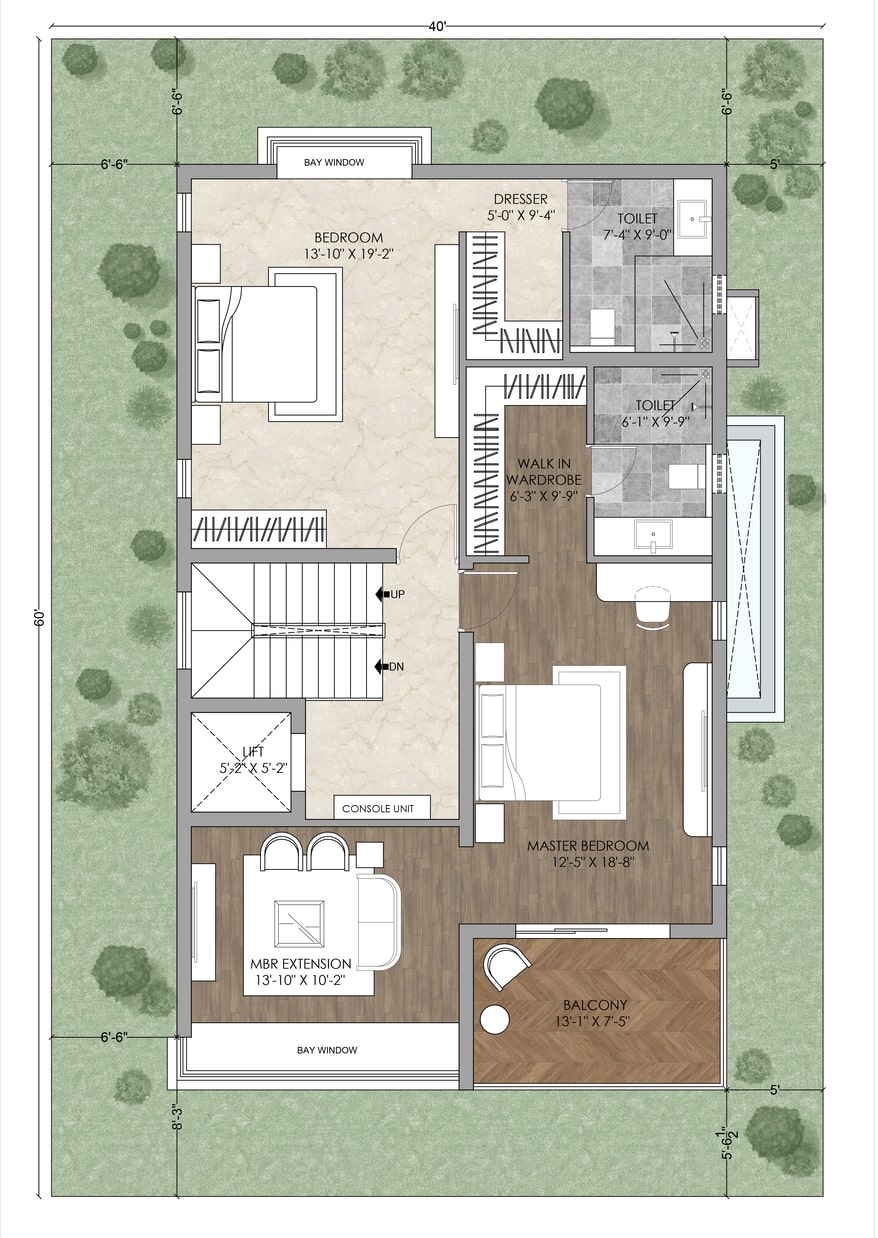

4 BHK Option

2250 sq ft

East facing

4 BHK + Study

2850 sq ft

East facing

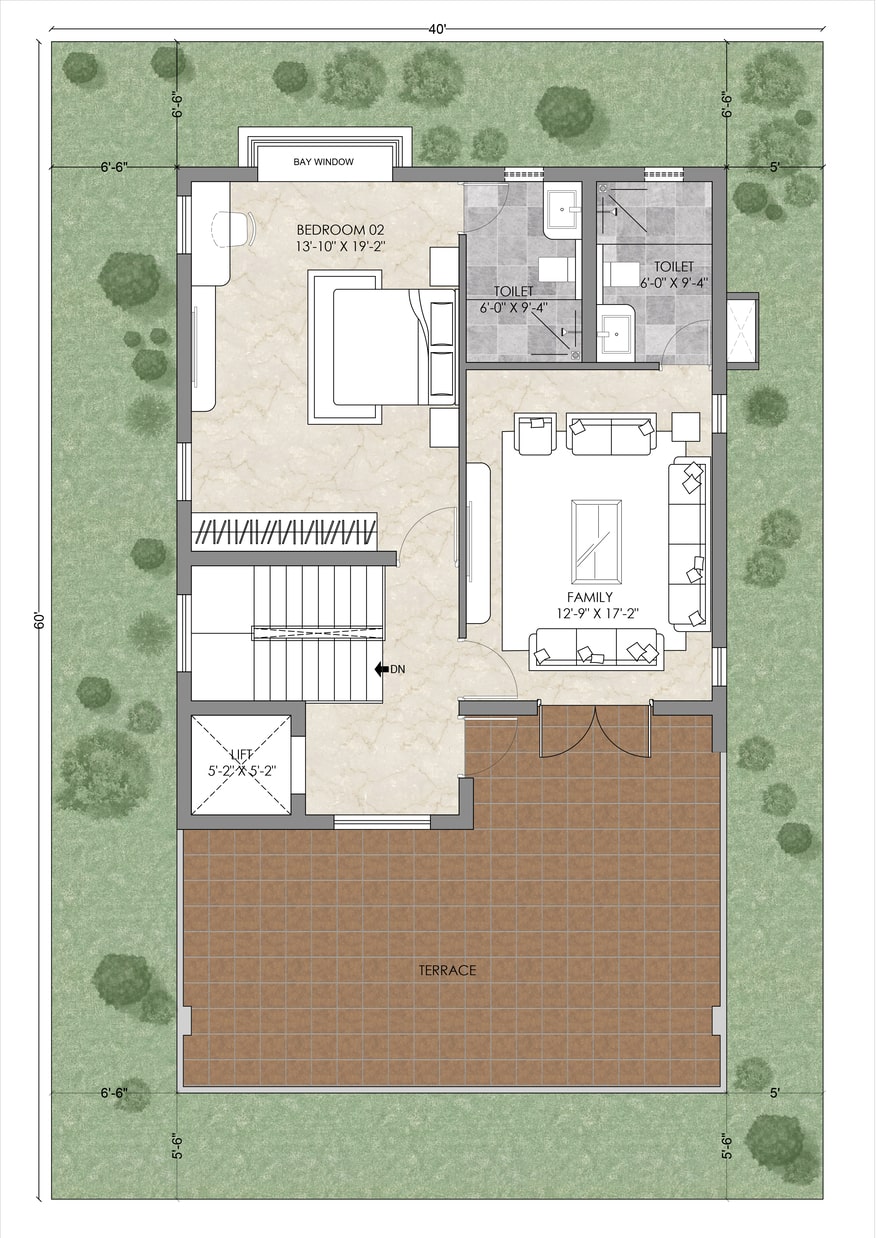

4 BHK + Family + Study

3600 sq ft

East facing

Villas Specs

Structure, Masonry and Finishes

Structure	Seismic zone Compliant
Main walls & partition walls	Brick work {9" for Main Wall 4 1/2 " for Partition wall}
Internal Wall & ceiling plastering	Sand faced plaster with waterproof compound
Ceiling Paint & internal wall paint	Non Lead Paint/Vedic paint
External Façade - Front Combination	Brick/Exposed Concrete/Textured Paint on the front façade as per Architectural Design
External Façade - Side & Back	Texture Paint on all sides
Railings for Internal Staircase, Balcony & Decks	Brick/Exposed Concrete/Textured Paint on the front façade as per Architectural Design
Roof/Terrace Material	Combination of Mangalore flat tiles/Terracota tile over brick bat coba

Flooring/Dado, wall and Ceiling

Entrance Foyer	Imported Marble flooring
Living/Dining	Imported Marble flooring
Master Bedroom	Imported Marble flooring
Other Bedrooms	Laminated wooden flooring
Kitchen	Non skid Vitrified Tiles
Utility	Kota/Slate
All Toilet	Anti-Skid Vitrified tiles with Tile Dado upto Flase Ceiling
Balcony	Anti-Skid Tiles/Slate
Deck Area	Lepothra finish Granite/Anti-Skid Tiles

Plumbing and Bathroom Fixtures

Sanitary Fittings & Plumbing Fittings	Jaguar/Kohler or equivalent
Stainless Steel Sink - Kitchen and Utility	Single Bowl sink in kitchen and Double bowl sink in utility
Shower Area	Glass partition for all toilets
Plumbing (Internal and External)	All Water Supply Lines in CPVC Pipes and Waste Water/Drainage Lines in
Provision for Water Purifier	Provided
False ceiling in all toilets	Moisture resistant PVC false ceiling

Specifications

Masterplan

Landscape concept by Cracknell, UK
Well planned road and pedestrian circulation with emphasis on green zones

Electricity & distribution network

Renewable energy for common areas and clubhouse lighting using solar and wind power leading to minimal carbon footprint
Power supply through underground cables with transformers, RMU (Ring Main Unit) and feeder-pillars for internal distribution

Water and Sewage

Water supply is through a hydro-pneumatic system, ensuring constant pressure to all plots
A step-well (Baori) for additional rainwater harvesting
A well-planned STP and usage of grey water forlandscaping
A network of saucer drains and holding chambers forrainwater harvesting ensuring maximum retention

Maintenance

Native foliage ensuring easy maintenance with an interplay of hard and soft landscaped zones
Reduce & recycle ethos through grey-water re-usage
Efficient usage of renewable energy ensuring lesser maintenance costs
Organic produce from farm to table for the community

Security

24-hr CCTV surveillance
Manned security 24/7
2m compound wall extending throughout the property

Roads, Walkways and Entry Plaza

Aesthetically landscaped entry plaza imparting a sense of arrival
Environmental friendly plastic infused roads that offers longer life spans
Pedestrian paths laid with Fly Ash pavers shaded with green aiding enhanced water absorption
